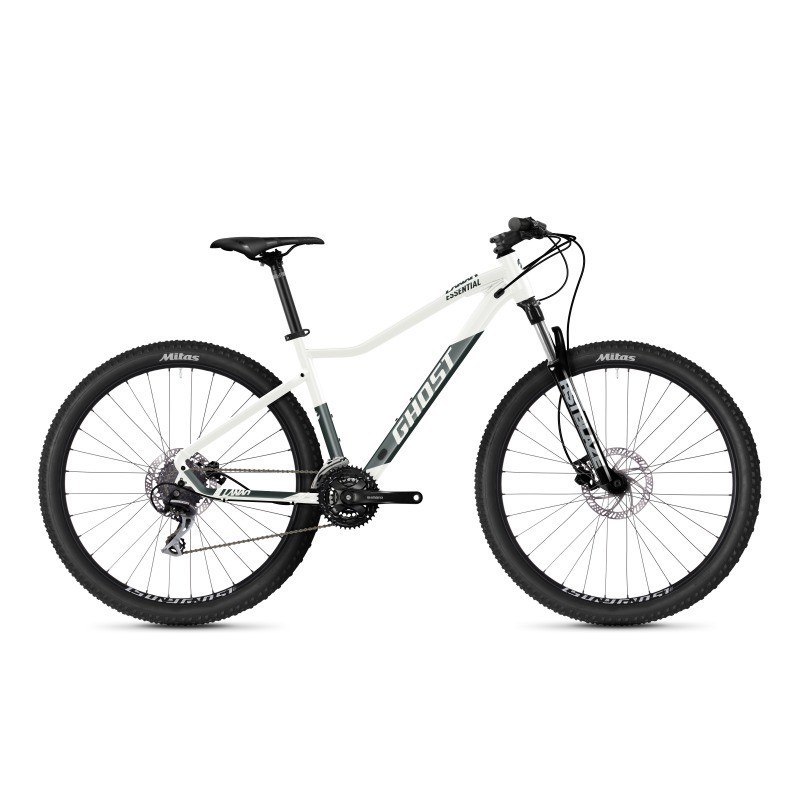

Ghost Lanao Essential 27,5 AL W

Especificaciones Ghost Lanao Essential

Bike Geometry

Bottom bracket drop [mm]:

45 mm

Chain stay length [mm]:

430 mm

Fork total length [mm]:

0 mm

Head tube angle:

68 degrees

Head tube length [mm]:

105 mm,115 mm,125 mm

Reach [mm]:

371 mm,393 mm,411 mm

Stack [mm]:

588 mm,598 mm,607 mm

Stand over height [mm]:

680 mm,710 mm,730 mm

Seat tube angle:

73.5 degrees

Seat tube length [mm]:

360 mm,400 mm,440 mm

Top tube length [mm]:

545 mm,570 mm,590 mm

Wheelbase [mm]:

1063 mm,1089 mm,1110 mm

Drivetrain

Cassette Teeth:

12-32T

Crank Arm length:

170

Crankset Teeth:

42-34-24T

Crankset Type:

triple

Number Of Gears:

24

Pedal Inclusive:

Si

Bottom Bracket Description:

Thun, BSA, PASO-ML 68-73

Cassette Description:

Shimano, Tourney TX CS-HG200-8, HG

Chain Description:

KMC, Z51 8s

Crankset Description:

Shimano, Tourney FC-TY301

Derailleur FrontDescription:

Shimano, Tourney FD-TY700-TS6 3x7/8s, Top Swing

Derailleur Hanger Description:

Ghost, GRH-21bl black + Screws FRHG0004

Derailleur Rear Description:

Shimano, Acera RD-M3020-SGS 7/8s

Gear Description:

Shimano, Derailleur

Pedal Description:

FPD, NW-91K steel cage black

Shifter Left Description:

Shimano, Triggershift, SL-M315-L 3x8s, Rapidfire+

Shifter Right Description:

Shimano, Triggershift, SL-M315-8R, Rapidfire+

Frame and more

Framesize Convection:

XS,S,M

Max loadable weight (KG):

120 kg

Front Fork Type:

Suspension

Type kickstand mount:

KSA40

Suspension Type:

Hardtail

Travel Front:

100 mm

Front Fork Description:

Suntour, SF15-XCM-DS-RL 100 mm QR

Frame Description:

MID, Aluminio, Mujeres

Handlebar and Saddle

Handlebar Diameter:

31.8 mm

Handlebar Material:

Aluminio

Handlebar Rise:

0

Handlebar Width:

700 mm,720 mm,740 mm

Seatpost Material:

Aluminio

Stem Length:

50 mm

Handgrip Description:

Ghost, GND51 MTB GRIP VLG-1751D2

Handlebar Description:

Ghost, Flat bar, Ground Fiftyone Dia. 31.8 mm, backsweep 9°

Headset Description:

Glory Wheel, Semi-integrated, Strummer Headset, 1SI110 ZS44/ZS44

Saddle Description:

Selle Italia, X-Base

Seatpost Description:

Kalloy, Non Suspension, SP-DC1, Dia. 31.6 mm, L: 350 mm, 350 mm

Stem Description:

Ghost, Ground Fiftyone Dia. 31.8 mm, L: 50 mm, A-Head

Sistema de frenos

Brake Front Mount:

Post Mount

Brake Rear Mount:

Post Mount

Brake Front Description:

Shimano, Freno de disco hidráulico, BR-MT200, 2 pistons, resin pad, 180 mm

Brake Rear Description:

Shimano, Freno de disco hidráulico, BR-MT200, 2 pistons, resin pad, 180 mm

Brake Lever Description:

Shimano, BL-MT200

Brake Rotor Description:

Shimano, SM-RT10 180 mm, Centerlock

Wheels and wheel components

Tamaño de la rueda en pul:

27.5

Hub Front Description:

Shimano, HB-TX505, 32H, QR 100 mm, Centerlock

Hub Rear Description:

Shimano, FH-TX505-8, 32H, QR 135 mm, Centerlock, HG

Rim Description:

Rodi, Excalibur XC19 27,5", single eyelet, 32H

Rim Rear Description:

Rodi, Excalibur XC19 27,5", single eyelet, 32H

Spoke Description:

DT Swiss, FACTORY 2.0

Tyre Description:

Mitas, Ocelot, 54-584

Tyre Rear Description:

Mitas, Ocelot

Wheelsize Description:

27.5, 27.5
