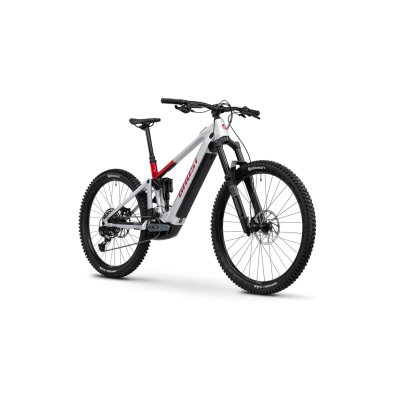

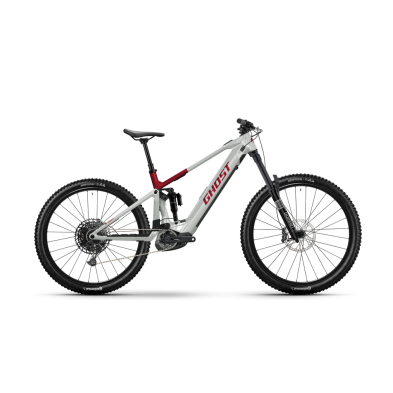

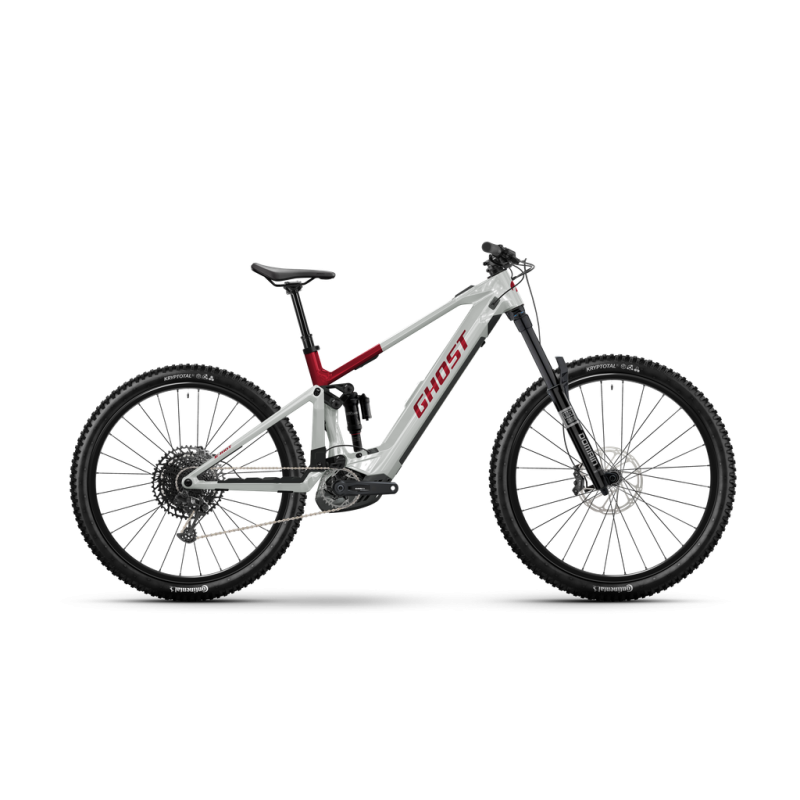

Ghost E-Riot CF Advanced

Especificaciones Ghost E-Riot CF Advanced

Bike Geometry

Bottom bracket drop [mm]:

10 mm

Chain stay length [mm]:

445 mm

Fork total length [mm]:

44 mm

Head tube angle:

64 degrees

Head tube length [mm]:

90 mm,100 mm

Reach [mm]:

435 mm,465 mm

Stack [mm]:

618 mm,627 mm

Stand over height [mm]:

763.6 mm,760.7 mm

Seat tube angle:

77.5 degrees

Seat tube length [mm]:

384 mm,409 mm

Top tube length [mm]:

572 mm,604 mm

Wheelbase [mm]:

1216 mm,1251 mm

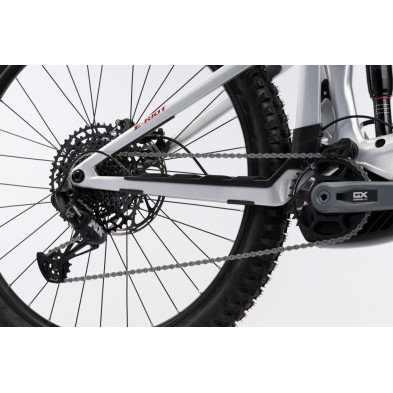

Drivetrain

Cassette Teeth:

11-50T

Crank Arm length:

165

Crankset Teeth:

34T

Crankset Type:

single

Number Of Gears:

12

Pedal Inclusive:

Si

Cassette Description:

Sram, PG-1230 Eagle, HG

Chain Description:

Sram, NX Eagle 12s

Chain Guide Description:

MRP, 1x for Bosch BDU38 32-36T

Crankset Description:

Sram, FC S1000 Eagle ISIS + CR XX Bosch DU38 DM T-Type

Derailleur Hanger Description:

Sram, UDH

Derailleur Rear Description:

Sram, NX Eagle 12s

Gear Description:

Sram, Derailleur

Pedal Description:

VP, VPE-527 Alloy w/ Reflector

Shifter Right Description:

Sram, Triggershift, NX Eagle Single Click Trigger

E-bike components

Battery Capacity:

800 Wh

Battery Location:

Powertube

Motor Torque [nm]:

85 Nm

Motor Location:

Center

Numer Of Level Assistance:

0

Battery Description:

Bosch, InTube 800 Wh

Charger Description:

Bosch, Charger 4A 220-240V

Display Description:

Bosch, Kiox 300 + Mini Remote

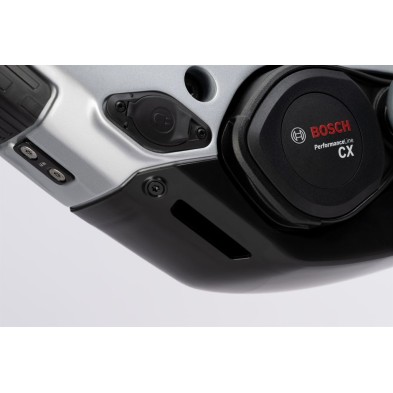

Motor Description:

Bosch, Performance Line CX

Frame and more

Framesize Convection:

S,M

Max loadable weight (KG):

150 kg

Front Fork Type:

Suspension

Suspension Type:

Fully

Travel Front:

170 mm

Travel Rear:

160 mm

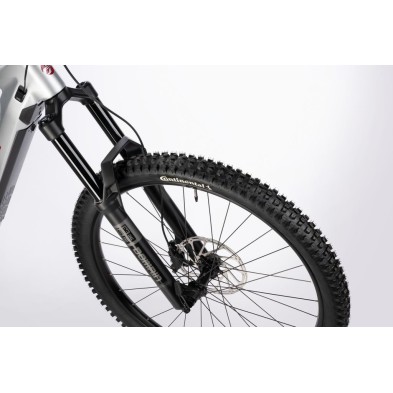

Front Fork Description:

Rockshox, Domain Gold Isolator RC3 Debonair 170 mm

Frame Description:

HIGH, Carbón, Unisex

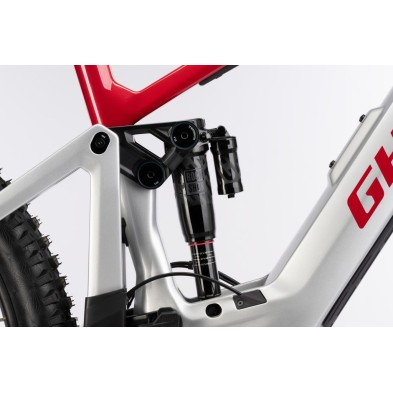

Shock Description:

Rockshox, Super Deluxe Select+ RCT 205x65mm, Trunnion

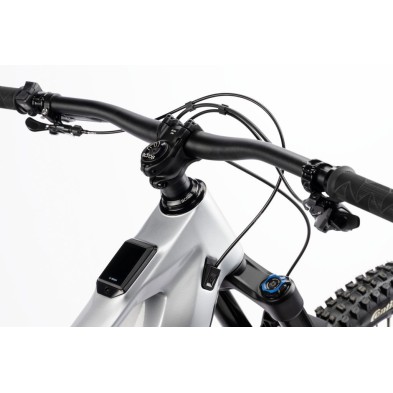

Handlebar and Saddle

Handlebar Diameter:

31.8 mm

Handlebar Material:

Aluminio

Handlebar Rise:

19

Handlebar Width:

800 mm

Seatpost Material:

Aluminio

Seatpost Travel (mm):

150 mm,170 mm

Stem Length:

40 mm

Handgrip Description:

XLC, GR-S34 MTB Sport Bar Grips - black

Handlebar Description:

PMG, Riser Bar, Team Riser Bar, Dia. 31.8 mm, Rise: 19 mm

Headset Description:

Acros, Semi-integrated, Blocklock 120° Tapered, Semi-Int. ZS56/ZS56

Saddle Description:

Fizik, Terra Aidon X5 145 mm

Seatpost Description:

Limotec, Dropperpost, Alpha 1 Dropper, Dia. 34.9 mm, Travel: 150 mm

Stem Description:

PMG, Team All Mtn, Dia. 31.8 mm, L: 40 mm, A-Head

Sistema de frenos

Brake Front Mount:

Post Mount

Brake Rear Mount:

Post Mount

Brake Front Description:

Sram, Freno de disco hidráulico, DB8 Stealth, 4 pistons, 200 mm

Brake Rear Description:

Sram, Freno de disco hidráulico, DB8 Stealth, 4 pistons, 200 mm

Brake Lever Description:

Sram, DB8 Stealth-BL

Brake Rotor Description:

Sram, DB Rotor Centerline 200 mm, rounded, Centerlock

Wheels and wheel components

Hub Front Description:

Shimano, HB-TC500-15-B 15x110 mm, 32H, Centerlock

Hub Rear Description:

Shimano, FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG

Rim Description:

WTB, ST i30 TCS 2.0 29" 32H

Rim Rear Description:

WTB, ST i30 TCS 2.0 27.5" 32H

Spoke Description:

DT Swiss, FACTORY 2.0

Tyre Description:

Continental, Kryptotal-Fr Enduro Super Soft, TR, 60-622

Tyre Rear Description:

Continental, Kryptotal-Re Downhill Soft, TR

Wheelsize Description:

29, 27.5
